Building A Bike Frame

November 22, 2021 Ag Manta

A few weeks ago, I went to Johnstown PA to learn how to build a bike frame with Megan Dean of Moth Attack. The course was designed around teaching with traditional, fillet-brazed construction and focused primarily on the use of hand tools. Over those two weeks, I measured, mitered and brazed a set of tubes together and ended up with a semblance of a bicycle frame. I also learned that there is an incredible amount of work that goes into a single fillet brazed frame. The whole experience was amazing, from the work we did, to the rides we went on. I’m very excited to finish the frame, build it up and ride it!

For this class we used a hacksaw, a drill and some files to get the tubes cut and mitered. After finalizing our designs in BikeCAD, we inspected and prepared our tubes. This meant marking centerlines, finding butts (haha) and labeling every part of the tube. Click through the gallery below for a much abridged step-by-step process of building the frame.

Marking and labeling tubes is very important.

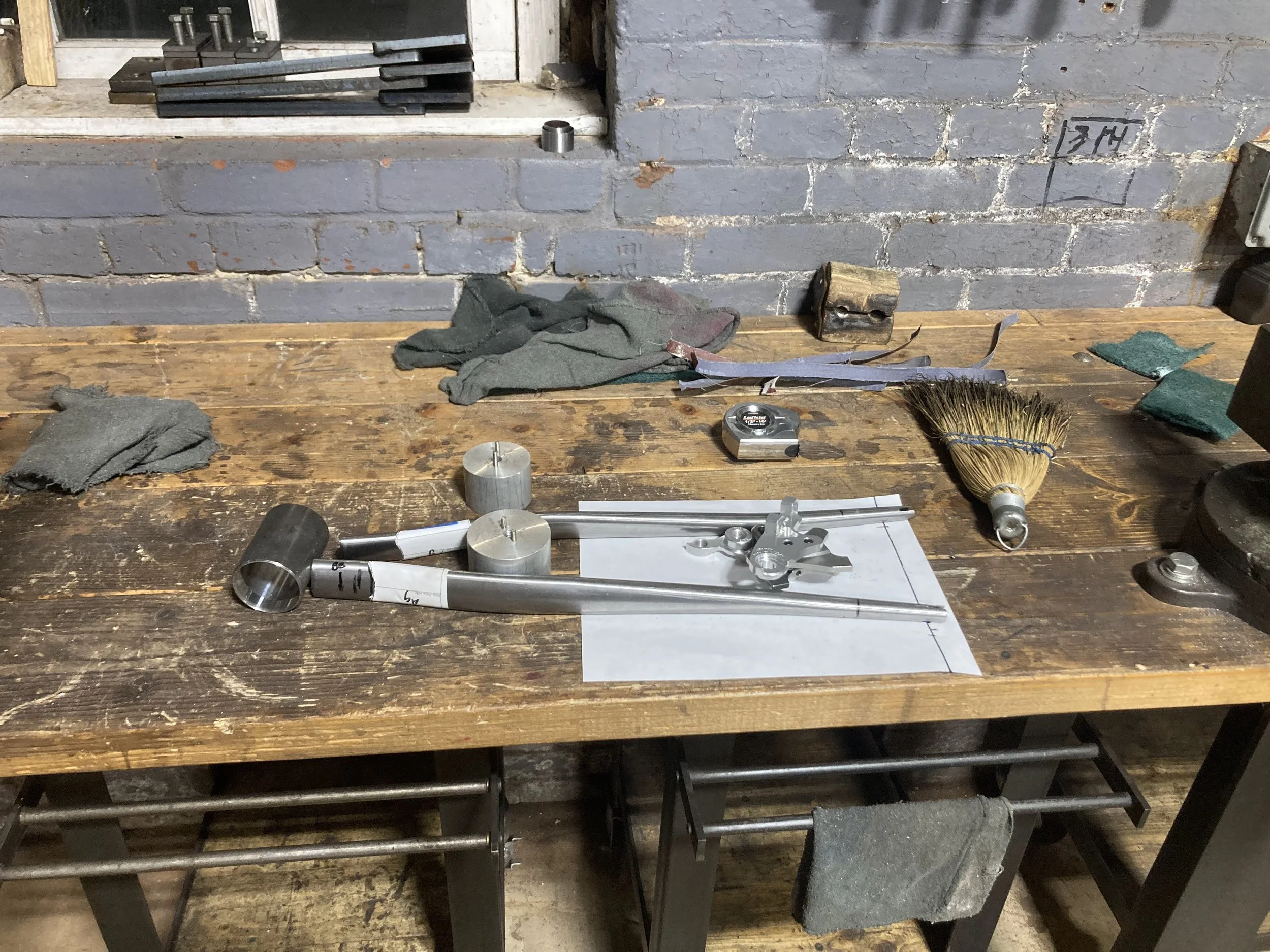

Front triangle is laid out with an edit of the frame design.

Some primary dimensions listed on final frame design from BikeCAD.

After a few practice joints, we attached our seat tube to the bottom bracket in the Anvil Jig

Next up was mitering and tacking the down tube. Getting the miters accurate was a really important and challenging part of building the bike frame. Megan helped out a lot!

Front triangle taking shape.

Tacked front triangle is ready to be taken out of the jig and fully brazed.

Megan is making sure I don’t overheat the tubes!

Freshly brazed, covered in flux.

Mocking up tire clearance for the rear. The bike is built around 27.5 x 2.3ish tires.

Tacked the stainless sliding dropouts. Stainless steel requires silver instead of brass.

There is a lot of double and triple checking alignment and clearances.

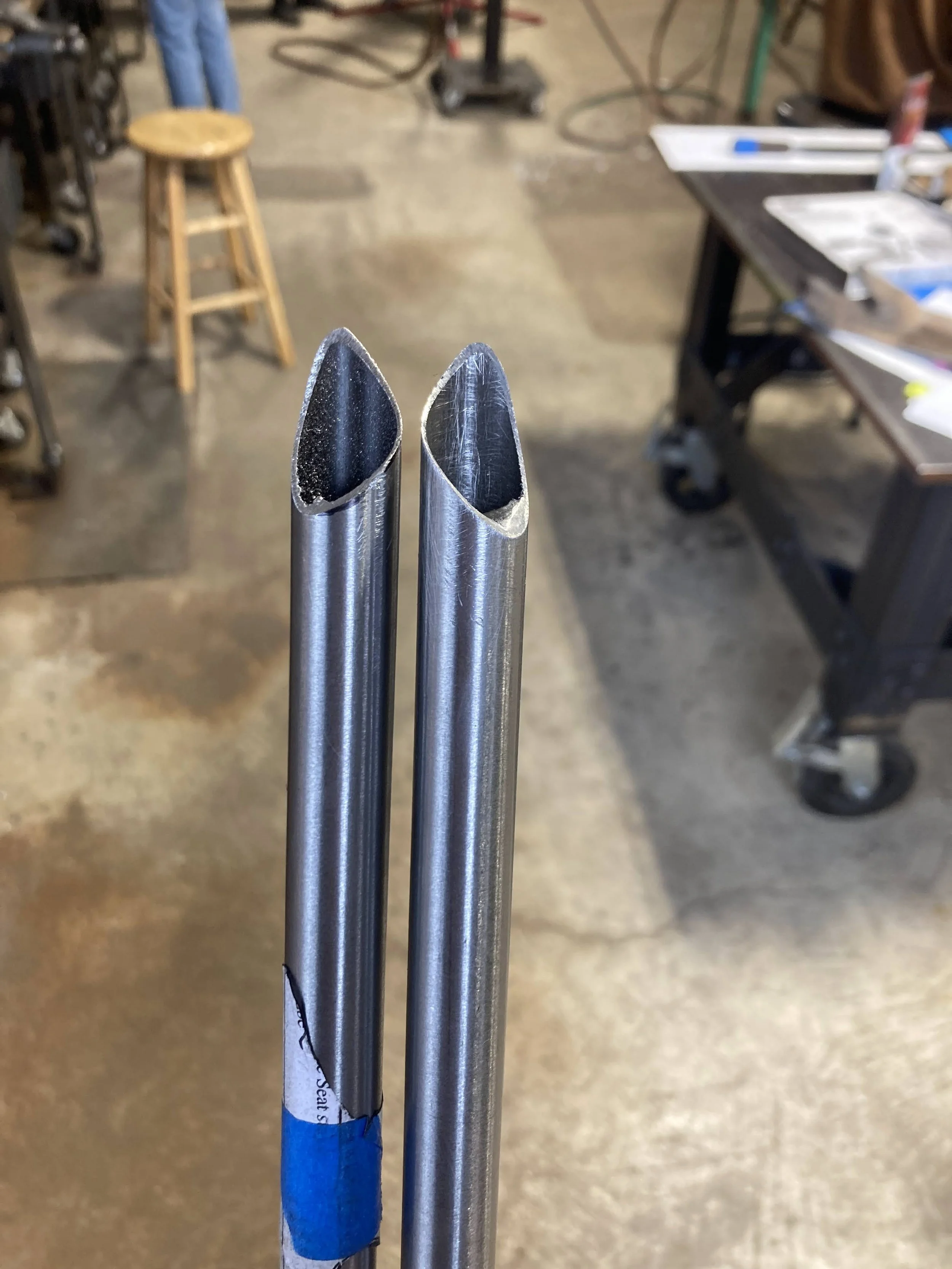

Trying to get the seatstay miters even.

The frame is tacked!

“Complete” frame, after brazing on cable guides and cage/bag mounts.

I would be remiss not to include pictures of Johnstown, Pa, from the Center for Metal Arts to Hope Cyclery to the wonderful places to ride.
